TPU Composite Fabric Customization Experts — TPU & Fabric Laminated Solutions
Introduction
Demand for multifunctional materials is rising across outdoor equipment, inflatable structures, healthcare, and industrial protection. TPU composite fabric—formed by laminating TPU film onto textile substrates—offers a unique combination of structural strength and functional protection. These composites deliver superior elasticity, sealing, durability and environmental compliance, making them ideal for next-generation product designs.
What is TPU Composite Fabric and Why It Matters
TPU composite fabric is produced by bonding a TPU functional layer to a base fabric substrate. The base fabric provides structural strength and tactile appearance, while the TPU layer provides barrier protection and functional performance.
- Base fabric role: tensile and tear resistance, surface texture, dimensional stability
- TPU layer role: waterproofing and airtight sealing, elasticity, abrasion and aging resistance, heat-sealability
- The resulting composite delivers a balanced material that is both protective and comfortable for end-use products

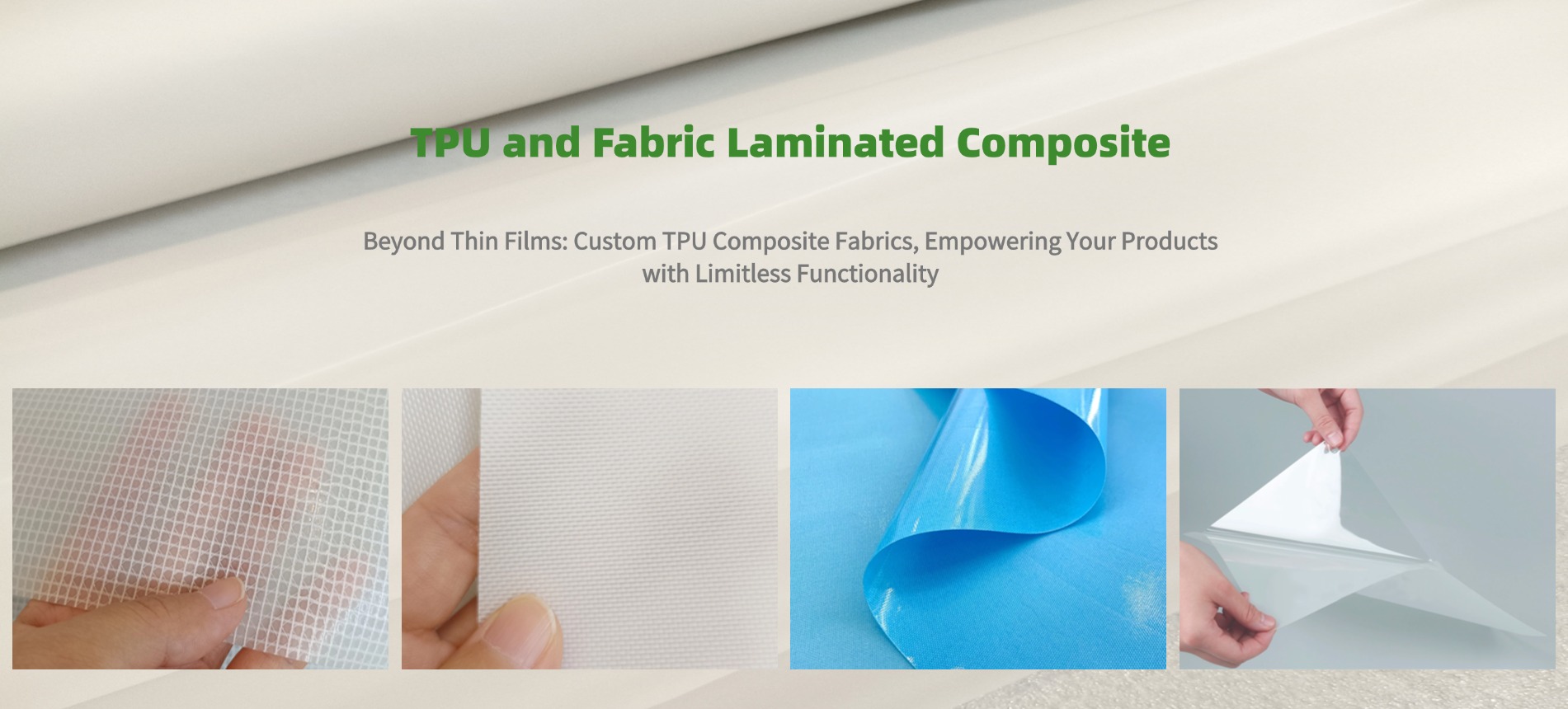

Application Product Categories

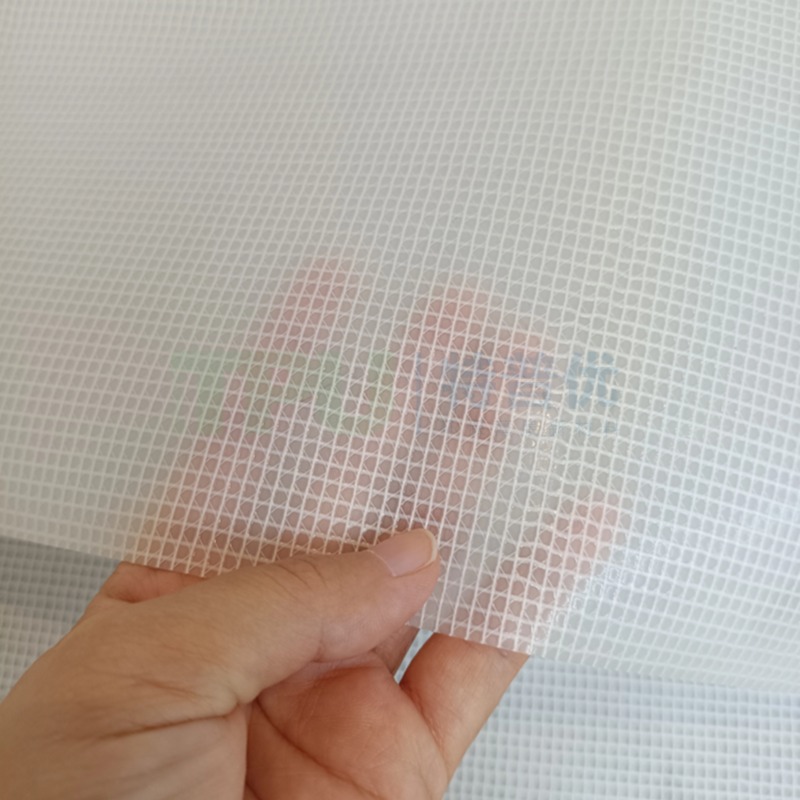

| TPU laminated mesh fabric | ||
 | Provides breathability combined with waterproofing and durability for sports gear, flexible structures and ventilation-enabled products. | |

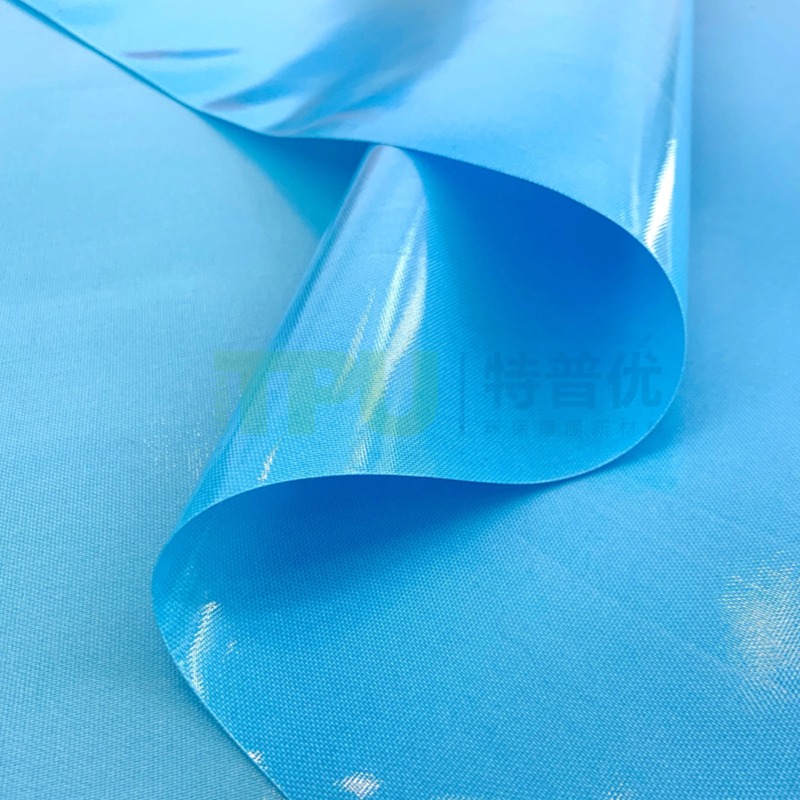

| TPU laminated nylon fabric | ||
 | High strength and excellent sealing for inflatable tents, airbags, packrafts and high-load inflatable products. | |

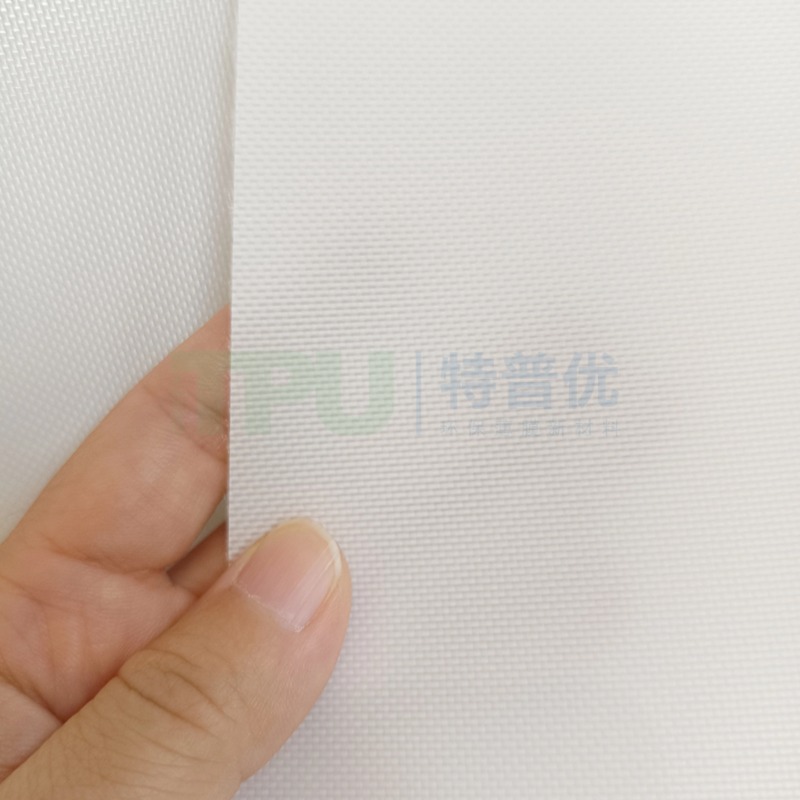

| TPU laminated Oxford cloth fabric | ||
 | Enhanced abrasion resistance and toughness for heavy-duty outdoor equipment, luggage, canopies and industrial covers. | |

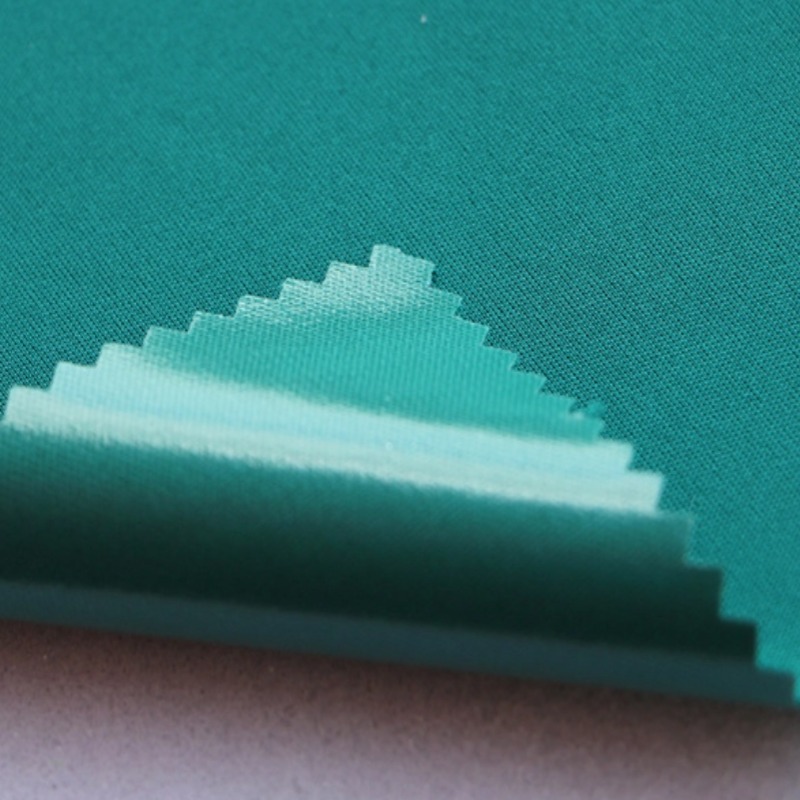

| TPU laminated polyester fabric | ||
 | Stable, cost-effective option used in waterproof bags, medical covers, protective garments and general outdoor products. | |
Key Benefits and Core Strengths
- High strength and durability: TPU + fabric synergy delivers superior tear and abrasion resistance compared to single-layer materials.
- Lightweight and soft: Maintains flexibility and comfort while adding robust protection and structure.
- Seamless waterproof sealing: Composite materials weld cleanly—enabling fully sealed products via high-frequency welding without additional tapes.
- Environmental and safety compliance: TPU formulations can be phthalate-free and meet REACH, RoHS, OEKO-TEX® and related standards.
- Customizable performance: Thickness, hardness, color and surface finish can be tuned per application requirements.
Custom Development Process
- Requirements consultation: Evaluate application scenario, waterproof rating, flexibility, weight, aesthetics and budget.
- Base fabric selection: Customer-supplied or supplier-recommended options such as high-strength nylon, Oxford, knitted fabrics or mesh.
- Process determination: Choose coating, hot-melt lamination or multi-layer approaches to meet adhesion and durability targets.
- Sample production and testing: Provide prototypes; perform hydrostatic, peel, thermal, UV and fatigue tests to validate performance.
- Mass production and delivery: Factory-direct manufacturing ensures consistent quality control and reliable lead times.
Technical Advantages & Performance Highlights
| TPU Composite Feature | Benefit for End-Use Products |
|---|---|
| Tensile & tear resistance | Maintains shape and resists puncture or tearing under load—important for inflatables and rugged outdoor gear. |
| Elasticity & flexibility | Allows repeated folding and inflation cycles without cracking, preserves comfort and structural integrity. |
| Heat-sealability | Enables strong, airtight seams with professional welding, reducing long-term leak risk. |
| Environmental durability | UV resistance, hydrolysis resistance and wide temperature tolerance extend outdoor service life. |
Industry Trends & Market Status (2024 Data Summary)
TPU film rapidly penetrated the inflatable product sector during 2020–2024. Market research indicates TPU penetration rose from under 15% in 2020 to approximately 38% in 2024, driven by a compound annual growth rate well above the industry average. This shift is visible as a top-down diffusion: TPU dominates mid-to-high-end inflatable mattresses (over 60% market share) and exceeds 75% application rates in specialized outdoor tents and high-end inflatable boats. These trends indicate that TPU replacing PVC is an ongoing industrial reality rather than a future projection.
Testing, Standards and Quality Assurance
- Air retention and hydrostatic testing: Validate long-term airtight performance under repeated cycles.
- Peel strength and adhesion testing: Ensure TPU-film-to-fabric bond meets application loads.
- Environmental simulation: UV aging, temperature cycling and humidity exposure tests.
- Mechanical testing: Tensile, elongation and abrasion resistance assessments.
- Compliance checks: REACH, RoHS, OEKO-TEX® and applicable ASTM/EN standards for intended markets.
Manufacturing Capabilities and Factory Strength
- Multiple production lines for coating and lamination to support sample and volume orders
- Advanced hot-melt lamination and solvent-free coating options for medical-grade and eco-sensitive applications
- Dedicated R&D and engineering teams for material formulation and process optimization
- ISO9001-aligned quality management and full traceability from raw materials to finished composite rolls
Typical Use Cases and Application Value
- Inflatable structures: Boats, rescue rafts, airbags and high-load mattresses benefit from airtight strength and weldability.
- Medical & rehabilitation: Pressure-relief mattresses and washable protective clothing gain comfort, hygiene and disinfectability.
- Industrial & military: Flexible liquid storage, inflatable shelters and canopies require chemical and weather resistance.
- Outdoor & consumer: Backpacks, waterproof bags, sleeping systems and glamping products gain durability and premium feel.
Why Choose Customized TPU Composite Fabrics
- Tailored formulations and fabric pairings to meet exact product requirements
- One-stop service from concept, sampling and testing to bulk production
- Proven performance in demanding sectors with repeatable quality
- Support for high-frequency welding and seamless product manufacture
- Ability to meet strict international environmental and safety certifications
Contact & Next Steps
If you have a specific product concept or need material recommendations, request sample development and performance testing to validate fit-for-purpose results. We can recommend base fabrics, tune TPU thickness and hardness, and produce application-ready composite rolls.
